Using a portable solar panel to charge your caravan battery is an efficient and eco-friendly way to ensure your power needs are met while on the road. Here’s a step-by-step guide on how to connect a portable solar panel to your caravan battery.

Step 1: Gather the Required Equipment

What you need？

1.Portable Solar Panel – Select a solar panel with the appropriate power output based on your energy requirements.
2.Solar Charge Controller – This device ensures the battery is charged safely and prevents overcharging.
3.Cables & Connectors – Use durable, high-quality cables that can handle the current between the solar panel and the battery.
4.Caravan Battery – Ensure your caravan has a deep cycle battery suitable for solar charging.

Step 2: Connect the Solar Panel to the Charge Controller

The solar charge controller serves as the intermediary between your solar panel and the battery. Connect the solar panel leads to the input terminals of the charge controller. Ensure the positive (+) and negative (-) wires are correctly aligned and securely attached.

Step 3: Connect the Charge Controller to the Caravan Battery

Next, connect the charge controller to your caravan’s battery. Use the controller’s battery output terminals, and double-check that the positive (+) and negative (-) wires match the corresponding terminals on the battery.
Secure the Connections: Ensure all connections are tight and properly insulated. Use cable ties or clamps to prevent cables from moving during travel. Fuse Protection: For safety, install an inline fuse between the charge controller and the battery on the positive lead. This will protect your system from short circuits.

Charger Controller & Solar Panel

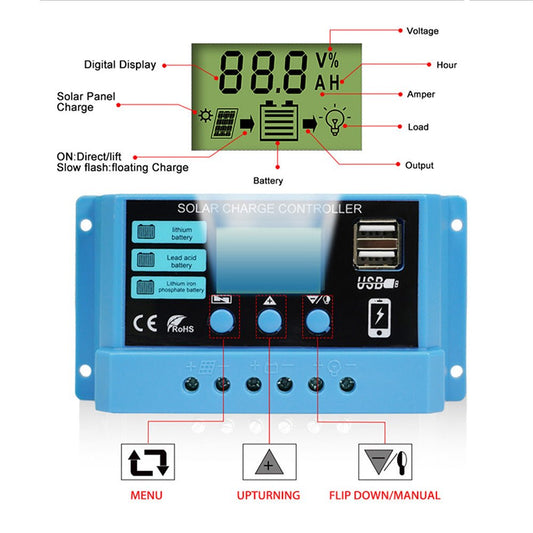

Nurzviy Solar Charge Controller 30A Dual USB 12V/24V

Nurzviy Solar Charge Controller 20A Dual USB 12V/24V

Nullam aliquet vestibulum augue non varius.
Shop Now
UirbxiySolar PanelsU400P

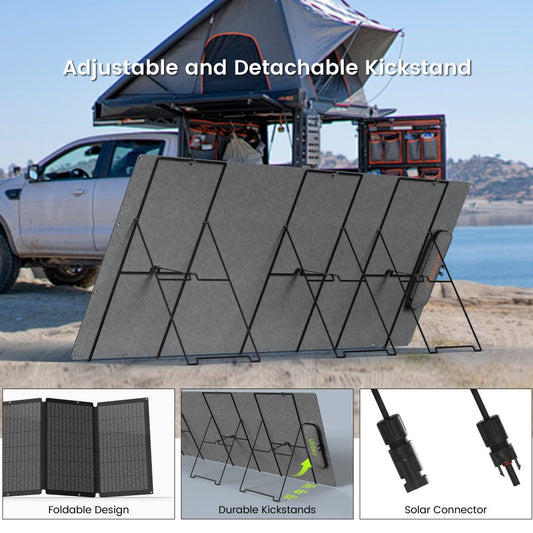

Nurzviy 400W Portable Solar Panel Lightweight Monocrystalline Suitcase

Shop Now

Step 4: Position the Solar Panel

The solar charge controller serves as the intermediary between your solar panel and the battery. Connect the solar panel leads to the input terminals of the charge controller. Ensure the positive (+) and negative (-) wires are correctly aligned and securely attached

Step 5: Monitor the Charging Process

Once connected, monitor the charging process via the charge controller’s display. It will show the battery’s current charge level and indicate if the system is functioning correctly

Conclusion

Connecting a portable solar panel to your caravan battery is a simple yet effective way to harness renewable energy and enjoy off-grid living. By following these steps, you can reduce your reliance on external power sources and ensure a reliable energy solution for all your caravan adventures.
